The solar energy

For home use solar panels produced by direct current (dc) or to be sent back to power company power supply system, need to convert dc to ac power regulator.
The solar energy

Fuji IGBT Modules for Solar makes (PDF, 3.4 MB)

The solar energy

Conversion circuit examples

The Type Single - phase
makes		 2 - level
makes		 NPC 3 - level
makes		 A - 3 - level NPC
With RB - IGBT
Circuit Single - phase makes conversion circuit examples 2 - level makes conversion circuit examples NPC 3 - level makes conversion circuit examples A - 3 - level NPC with RB - IGBT switching circuit examples
Device IGBT: 600 v IGBT: 1200 v IGBT: 600 v IGBT: 1200 v
+ 600 v IGBT (RB)
The Output
Voltage		 IGBT: 600 v Voltage IGBT: 1200 v Voltage IGBT: 600 v Voltage IGBT: 1200 v Voltage
Capacity < 10 kw > 10 kw > 10 kw > 10 kw

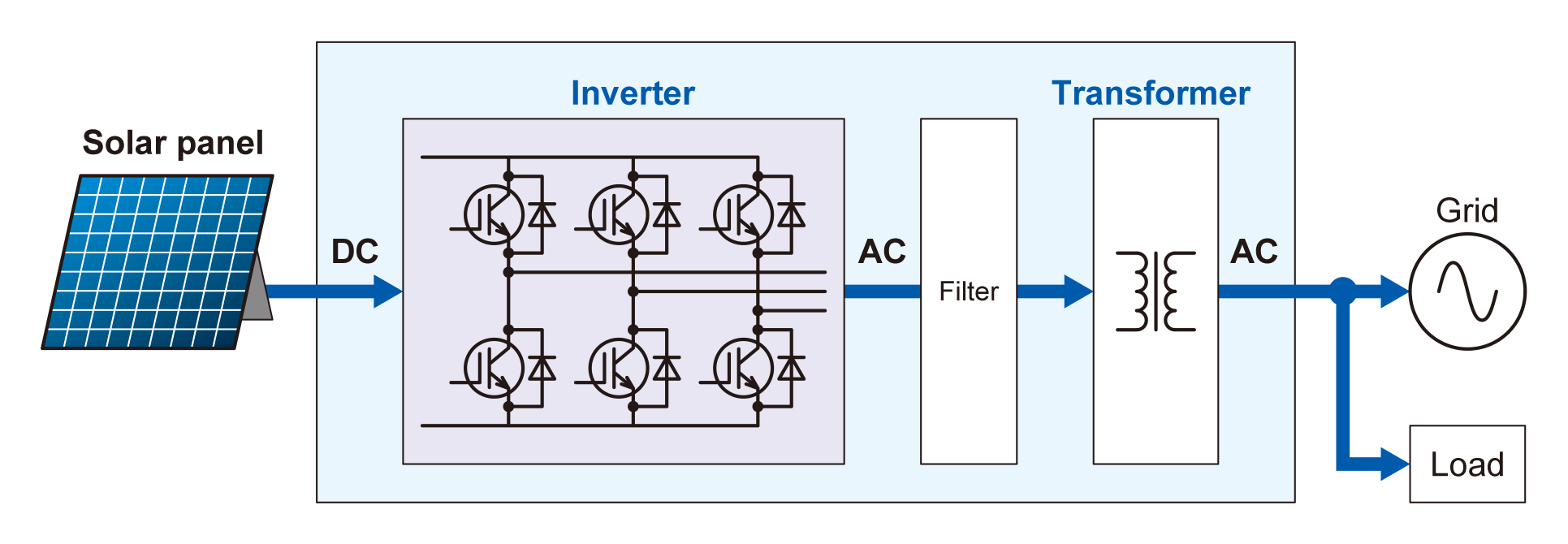

Solar inverter with IGBT module

Table 1. 2 level inverter

2 level topology (condition: Vdc rating = 450 v, the Vdc Max = 850 v)

PCS Device rating IGBT V series IGBT X series The Number of
The parallel
10 kw 1200 v / 40 a FGW40XS120C 1
15 kw 1200 v / 50 a 6 mbi50va - 120-50
6 mbi50vw - 120-50		 1
20 kw 1200 v / 75 a 2 mbi75va - 120-50
6 mbi75va - 120-50
6 mbi75vw - 120-50		 FGW75XS120C 1
30 kw 1200 v / 100 a 2 mbi100va - 120-50
6 mbi100va - 120-50
6 mbi100vw - 120-50
6 mbi100vb - 120-50
6 mbi100vx - 120-50		 2 mbi100xaa120-50
6 mbi100xae120-50
6 mbi100xba120-50
6 mbi100xxa120-50		 1
1200 v / 150 a 2 mbi150va - 120-50
2 mbi150vb - 120-50
6 mbi150vb - 120-50
6 mbi150vx - 120-50		 2 mbi150xaa120-50
6 mbi150xba120-50
6 mbi150xxa120-50		 1
50 kw 1200 v / 180 a 6 mbi180vb - 120-50
6 mbi180vx - 120-50		 1
1200 v / 200 a 2 mbi200vb - 120-50
2 mbi200vh - 120-50		 2 mbi200xbe120-50
2 mbi200xaa120-50
6 mbi200xba120-50
6 mbi200xbe120-50
6 mbi200xxa120-50
6 mbi200xxe120-50		 1
1200 v / 300 a 2 mbi300vd - 120-50
2 mbi300vh - 120-50
2 mbi300ve - 120-50
2 mbi300vn - 120-50		 2 mbi300xbe120-50
2 mbi300xha120-50
2 mbi300xna120-50		 1
100 kw 1200 v / 450 a 2 mbi450vh - 120-50
2 mbi450ve - 120-50
2 mbi450vn - 120-50		 2 mbi450xee120-50
2 mbi450xha120-50
2 mbi450xna120-50		 1
125 kw 1200 v / 600 a 2 mbi600ve - 120-50
2 mbi600vn - 120-50
2 e mbi600vxa - 120-50		 2 mbi600xde120-50
2 mbi600xha120-50
2 mbi600xee120-50
2 mbi600xng120-50		 1
250 kw 1200 v / 900 a 2 e mbi900vxa - 120-50
2 mbi900vxa - 120 - p - 50		 2 mbi900xxa120p - 50 1
1200 v / 1200 a 2 mbi1200xxe120p - 50 1
1200 v / 1400 a 2 e mbi1400vxb - 120-50
2 mbi1400vxb - 120 - p - 50		 2 mbi1400xxb120p - 50 1
500 kw 1200 v / 900 a 2 p x 2 e mbi900vxa - 120-50
2 mbi900vxa - 120 - p - 50		 2 mbi900xxa120p - 50 2
1200 v / 1800 a 2 mbi1800xxf120p - 50 1
1200 v / 1200 a 2 p x 2 mbi1200xxe120p - 50 2
1200 v / 1400 a x2p 2 e mbi1400vxb - 120-50
2 mbi1400vxb - 120 - p - 50		 2 mbi1400xxb120p - 50 2
1000 kw 1200 v / 900 a x 4 p 2 e mbi900vxa - 120-50
2 mbi900vxa - 120 - p - 50		 2 mbi900xxa120p - 50 4
1200 v / 1200 a x 4 p 2 mbi1200xxe120p - 50 4
1200 v / 1400 a x 4 p 2 e mbi1400vxb - 120-50
2 mbi1400vxb - 120 - p - 50		 2 mbi1400xxb120p - 50 4

The NEWThe new product

The UPupdate

UDThe development of

Table 2. The NPC three level inverter

A - NPC three level topology (condition: Vdc rating = 450 v, the Vdc Max = 850 v)

PCS Device rating IGBT V series The Number of
The parallel
15 kw 1200 v / 50 a 12 mbi50vn - 120-50 1
12 mbi50vx - 120-50 1
20 kw 1200 v / 75 a 12 mbi75vn - 120-50 1
12 mbi75vx - 120-50 1
30 kw 1200 v / 100 a 12 mbi100vn - 120-50 1
12 mbi100vx - 120-50 1
50 kw 1200 v / 300 a
1200 v / 340 a		 4 r mbi300vg - 120-50 1
4 r mbi340vf - 120-50 1
100 kw 1200 v / 400 a
1200 v / 450 a		 4 r mbi400vf - 120-50 1
4 r1 mbi450vb - 120-50 1
2 mbi450vh - 120-50
2 mbi450vh - 120 - f - 50		 1
125 kw 1200 v / 300 a x 2 p
1200 v / 650 a		 4 r mbi300vg - 120-50 2
4 r1 mbi650vb - 120-50 1
250 kw 1200 v / 300 a x 4 p
1200 v / 900 a
For 1500 with a 1200 v / 600 a (VDC)		 4 r mbi300vg - 120-50 4
4 r1 mbi900vb - 120-50 1
4 ra mbi900vb - 120-50 1
4 mbi600vc - 120-50 1
500 kw 1200 v / 900 a x 2 p
1200 v / 600 a x 2 p (for 1500 VDC)		 4 r1 mbi900vb - 120-50 2
4 ra mbi900vb - 120-50 2
4 mbi600vc - 120-50 2
1000 kw 1200 v / 900 a x 4 p
1200 v / 600 a x 4 p (for 1500 VDC)		 4 r1 mbi900vb - 120-50 4
4 ra mbi900vb - 120-50 4
4 mbi600vc - 120-50 4

The NEWThe new product

The UPupdate

UDThe development of
